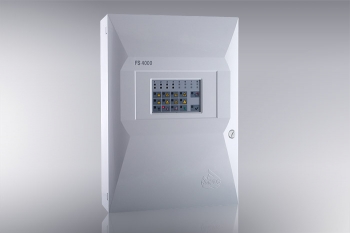

Name: Fire Control Panel FS 4000/2/4/6/8 zones

Description:

FS4000 is already certified by EVPU!!!

Fire Control Panel FS 4000 is a modern, highly reliable, multifunctional and versatile product. It is designed to receive signals emitted by manual call points and automatic fire detectors, producing sound and light indication. The Fire Control Panel provides options for integration of external sound units and executive devices.

The Fire Control Panel is produced in four versions:

• 2 fire alarm lines FS 4000/2
• 4 fire alarm lines FS 4000/4
• 6 fire alarm lines FS 4000/6
• 8 fire alarm lines FS 4000/8

Functional data

- Control over fire alarm lines and controllable output for Fault conditions (Short circuit and Interruption) and automatic reset

- Detection of Removed fire detector and automatic reset

- Ability to identify automatic fire detectors and manual call points

- Delay option of 1,2,3,4 or 5 minutes for outputs

for Fire condition after Fire condition is registered.

- LED indication for Fire condition and Fault condition

- Built-in sound signalization for Fire condition

(one-tonal, continuous), that can be switched off

- Built-in sound signalization for Fault condition (one-tonal, discontinuous) that can be switched off

- Test mode of fire alarm lines

- Disable of fire alarm lines

- Disable of outputs for Fire condition

Additional functional data of FS4000 new edition:

- There is one more controllable output, than the panel has complete 2 controllable outputs for FIRE.
- There is connector and functions to join additional modul extention - FD4201, which include 2, 4, 6 or 8 relay outputs depend from the configuration, also RS485 interface for connection with other devices and networr.
- There is jumper for disabling of fault Earth.

Technical data

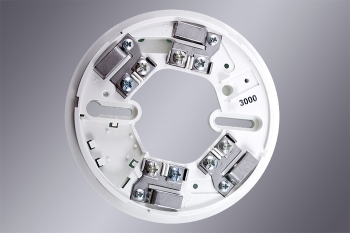

Name: Bases series 3000

Description:

3000 Standard Base – It is used upon operation with Fire Control Panels, where Fault Condition Removed detector shall be signaled as a Fault condition Interruption.

3000D Base with Schottky diode – It allows the Fire Control Panel to recognize Fault condition Removed detector from Faults condition Interruption.

3000R Base with relay output – It is used systems, where it is necessary that the activated fire detector activates additional device through the relay contact.

3000DR Base with Schottky Diode and Resistor – It is used in systems, where the activated fire detector must increase additionally the current in a line. It allows the Fire Control Panel to recognize Fault condition Removed detector from Fault condition Interruption.

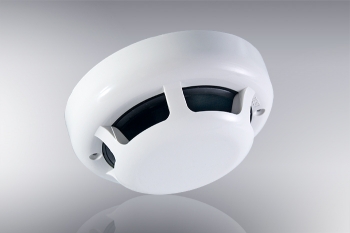

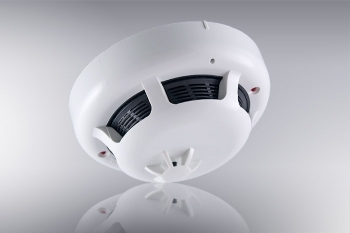

Name: Fixed temperature heat detector FD3010

Description:

FD 3010 Fixed temperature heat detector – The fire detector provides reliable early warning of a Fire condition upon ambient temperature reaching a fixed temperature threshold. It is available in two versions (A2S or BS) depending on the temperature threshold in accordance with the European Standard EN 54-5.

The fire detector is suitable for premises with normal or high ambient temperature, with possible sudden changes.

Technical data

Name: Rate of rise heat detector FD3020

Description:

FD 3020 Rate of rise heat detector – The fire detector provides reliable early warning of a Fire condition reaching a rate of the temperature or fixed temperature threshold in the protected premises.

It is available in two versions (A2R or BR) depending on the temperature threshold in accordance with the European Standard EN 54-5.

The fire detector is suitable for premises with normal ambient temperature, without possible sudden changes.

Technical data

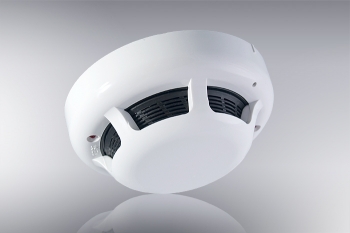

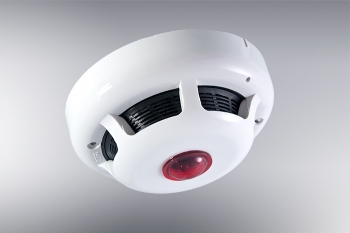

Name: Smoke detector FD3030

Description:

FD 3030 Optical-smoke detector – The fire detector provides reliable early warning of a Fire condition responding to fixed threshold smoke concentration detected in the protected premises.

The construction ot the optic chamber and the technology used in the manufacturing ot the screen provides high level protection against entering dust particles and insects and working under strong air flow.

The smoke sensitivity is in accordance with the European Standard EN 54-7.

Technical data

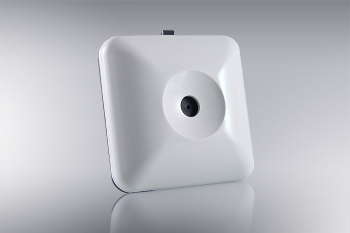

Name: Flame detector FD3040

Description:

FD 3040 Flame fire detector – The fire detector provides reliable early warning of a Fire condition upon detecting the infrared emission of the flame

It is suitable for premises where other types of fire detectors are not applicable.

The detector complies with the requirements of the European Standard EN 54-10.

Technical data

Name: Manual Call Point FD3050

Description:

FD3050 Manual Call Point – It is designed to release a signal for a Fire condition to the Fire Control Panel upon manual activation by breaking the glass on the place, signed with arrows. The light indication for activating the manual call point is provided by a red LED. There is a possibility for testing by a special key.

It satisfies the requirements of the European Standard EN54-11 for a type A manual call point.

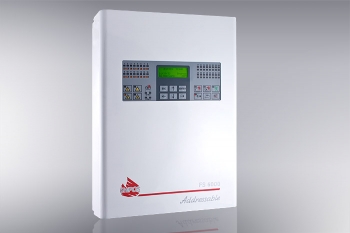

Name: Fire Control Panel FS6000

Description:

FS6000 Addressable fire control panel

The FS6000 control panel has a modular organization. One Line Driver Module is capable to drive 4 output lines. Each output line may be configured as an open Line or two output lines may be united in a closed Loop configuration. The maximum configuration is of 16 Lines or 8 Loops.

Each Line or Loop may contain a maximum of 127 address point (detectors or adapters). The system registers the condition of the addressable points – normal, fire condition or fault condition – and the conditions are displayed at the panel with specific combinations of LEDs. For each addressable point a text message displayed on the panel to determine the point’s exact location may be assigned (example Floor 5 Room12). The communication between the panel and the addressable points is provided by two wire line and uses a specialized protocol. Protection against false alarm is available by repeated check ups of the activated detectors. The electromagnetic interference is filtered by the means of control equipment and software. In Loop configurations power is supplied from both sides and in case of a short circuit the short circuited segment is cut off by the isolators. All conditions and common faults are indicated and registered by the panel. It is possible to include conventional fire detectors in the FS6000 system using the addressable adapter.

The addressable adapter allows for conventional detectors to be included in the FS6000 Fire Alarm System.

Control, programming and signalization are carried out by the system’s front panel, supplied with LED indicators, liquid crystal display and a keypad. The language select option is user-friendly.

Technical data

Name: Addressable fixed temperature, heat detector FD6110L

Description:

FD6110L Fixed temperature heat detector provides reliable early warning of a fire condition with or without smoke emissions, with minimum risk of false alarm. The fire detector reacts upon a fixed temperature threshold in the protected area. FD6110L is available in two versions depending on the temperature threshold in accordance with the European Standard EN54-5 (class A2S or BS). The detector is suitable for premises with high and normal ambient temperature, with possible sudden changes.

Technical data

Name: Addressable fixed temperature, heat detector FD6110L

Description:

FD6110L Fixed temperature heat detector provides reliable early warning of a fire condition with or without smoke emissions, with minimum risk of false alarm. The fire detector reacts upon a fixed temperature threshold in the protected area. FD6110L is available in two versions depending on the temperature threshold in accordance with the European Standard EN54-5 (class A2S or BS). The detector is suitable for premises with high and normal ambient temperature, with possible sudden changes.

Technical data

Name: Addressable rate of rise heat detector FD6120L

Description:

FD6120L Rate of rise heat detector provides reliable early warning of a fire condition with or without smoke emissions, with minimum risk of false alarm. The fire detector reacts upon a rate of rise in temperature higher than the specified or upon reaching a fixed temperature threshold. The fire detector is available in two versions depending on the temperature class in accordance with the European Standard EN54-5 (class A2R or BR). It is suitable for premises without normal ambient temperature, without possible sudden changes.

Technical data

Name: Addressable smoke detector FD6130L

Description:

FD6130L Optical-smoke detector provides early warning of open or concealed fire, responding to smoke emissions concentration. Infrared light emitter and receiver are mounted in fire detector’s optical chamber. The principle of functioning in based upon smoke particles entering the detector head’s smoke chamber causing distraction of infrared rays within the chamber (the Tindal effect). The light is transformed into voltage. The activation threshold of the detector is factory set at a specific smoke concentration level. FD6130L complies with the European Standard EN54-7 and is effectually protected against, high humidity and strong air flow.

Technical data

Name: Addressable combined detector FD6120&6130L

Description:

FD6120&6130L Combined optical smoke and rate of rise heat detector provides early warning of open or concealed fire condition responding to: smoke concentration threshold or rate of rise of the temperature higher than the specified one, or fixed temperature threshold. FD6120&6130L combine the advantages of optical smoke and rate of rise heat detectors with low delivery and installation expenses.

Technical data

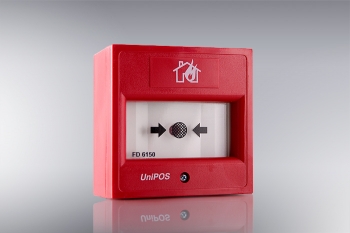

Name: Addressable manual call point FD6150

Description:

FD6150 Manual call point

Satisfies the requirements of the European Standard EN54-11 for a Type A manual call point. A test option is provided by the means of special test key. Upon manual call point activation the red LED is illuminated simultaneously.

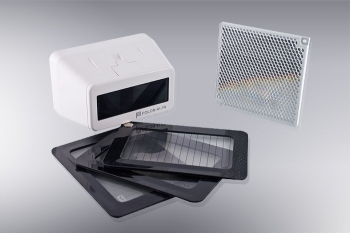

Name: Beam optical smoke detector DOP 40

Description:

The DOP-40 beam smoke detector is designed for detection of smoke, nascent at the beginning stage of fire. It is especially suitable for protection of rooms, in which appearing of smoke, in the first phase of fire origin, is expected. This type of fire detector is, also, recommended for protection of places, where, due to large protected area, would be necessary to use of large number of point smoke detectors.

Technical data

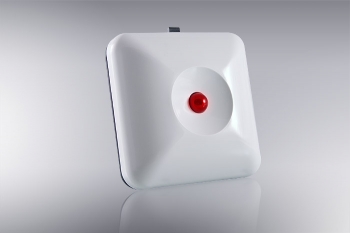

Name: Remote indicator RI31

Description:

Designed to duplicate the light signal from activated automatic fire detector.
Central placed LED (f10 mm) and specially designed reflector provides maximal visibility.

Name: Remote Indicator RI 31S

Description:

Designed for sound signal of activated automatic fire detector.

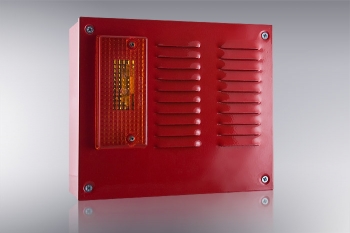

Name: Outdoor siren SB 112F

Description:

SB 112F is designed to signalize for fire sound signal in fire alarm systems. The siren is compatible with fire alarm panels, which provide in alarm mode output 24 V.
SB 112F is high frequency armored siren. The box is produced from steel sheet with thickness 1 mm with polymer covering.
The siren is complete with lamp 24V/5W, which flash with frequency 1.5 Hz in alamr mode.
SB 112F works good in wide range of supplying voltage.

Technical characterisics:

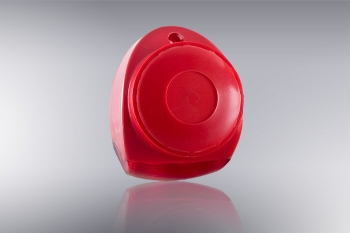

Name: Indoor siren SF110P

Description:

SF110P is designed to signalizing of fire sounde signal in the fire alarm systems. The siren is compatible with all panels, which provide in alarm mode on some of outputs 12-24V DC at current 150 mA.

Technical characteristics:

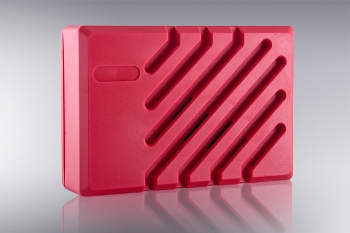

Name: Indoor siren SV2002F

Description:

SV2002F siren is designed to complete fire alarm systems in flats, shops, offices, warehouses and etc. under cover.

Technical data:
